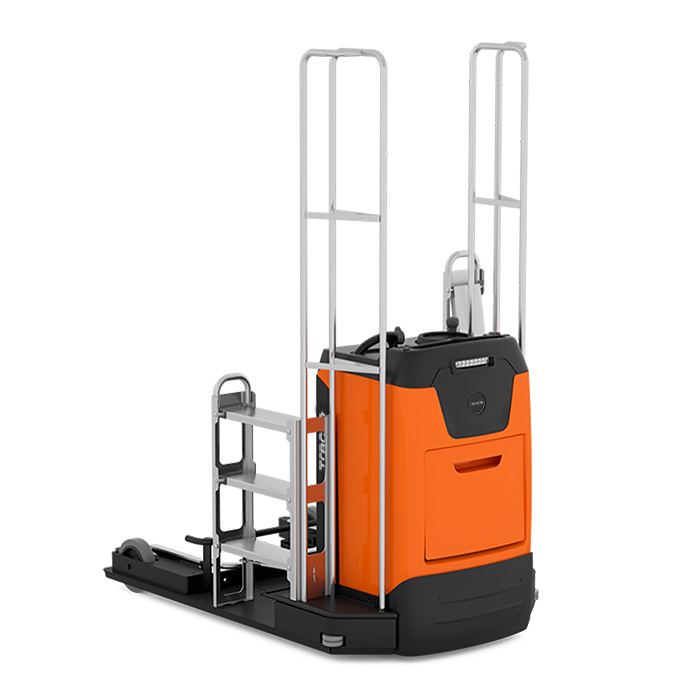

Toyota BT Optio 1t with ladders
-
1000 kg -
105 Ah -
24 volt -
12,0 km/h
![- Toyota BT Optio 1t with ladders - [Missing text '/ProductPage/Images/Image' for 'English'] 1](/globalassets/inriver/resources/tse100w-710-application-2.jpg?autorotate=true)
![- Toyota BT Optio 1t with ladders - [Missing text '/ProductPage/Images/Image' for 'English'] 2](/globalassets/inriver/resources/tse100w-710-application.jpg?autorotate=true)
Product features
- For order picking operations on first and second level using a step trolley
- Unique docking system, the tractor and the trolley become one unit
- Suited for light and medium duty applications with up to 50 % increased productivity compared to manual picking
- Easy and safe hop on & off
- Possibility to add ladders for picking height up to 2.5 m

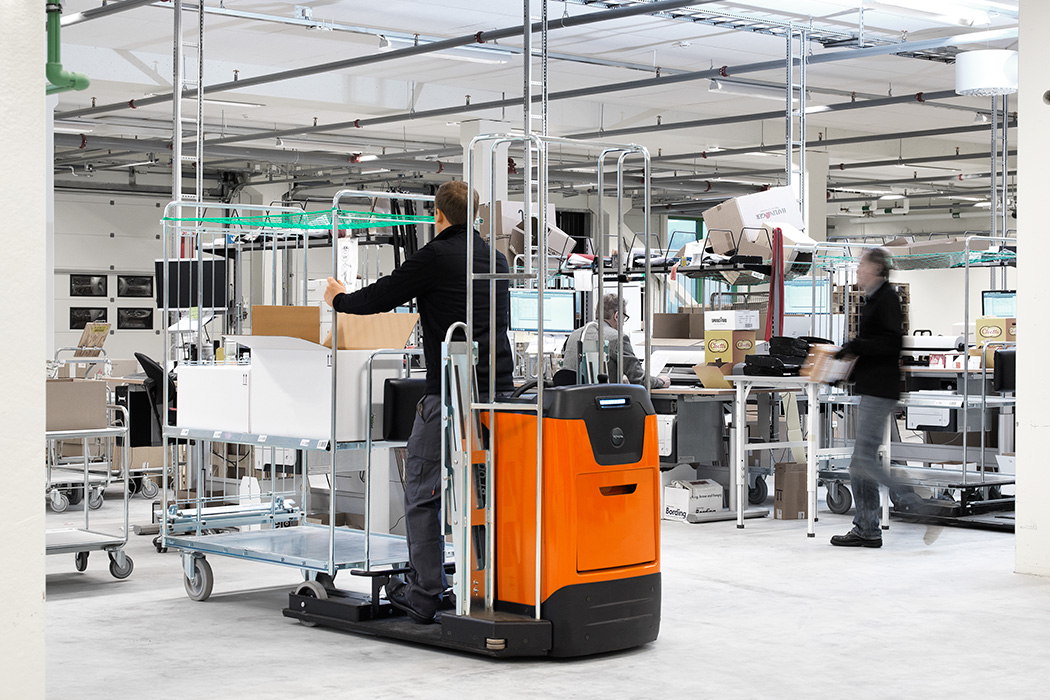

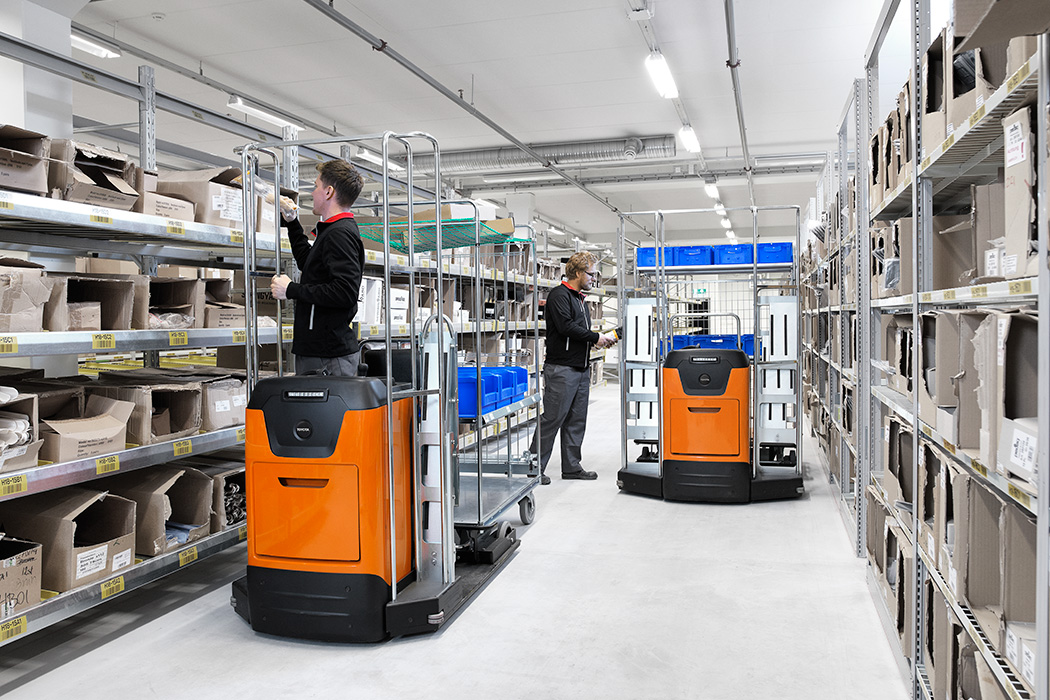

The Toyota BT Optio N-series trucks are lightweight and very compact order pickers, suitable for use in many different applications. The step-in height is very low and connecting trolleys is easy. Different types of trolleys can be combined in a train. The trolley width for this model is 800 mm. Possibility to add ladders for increased picking height.
Unique docking system to connect trolleys
The unique docking system of the Toyota BT Optio N-series makes attaching and detaching trolleys a fast and easy action. Once connected, they become one small and manoeuvrable unit. Connecting to 800 mm wide trolleys, this model is suitable for handling large size goods.

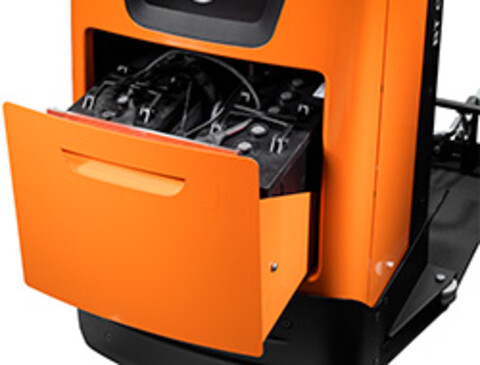

Choice of Lead acid or Li-ion batteries
Different types of batteries depending on customer needs: lead acid with easy battery exchange or Li-ion for quick opportunity charging.

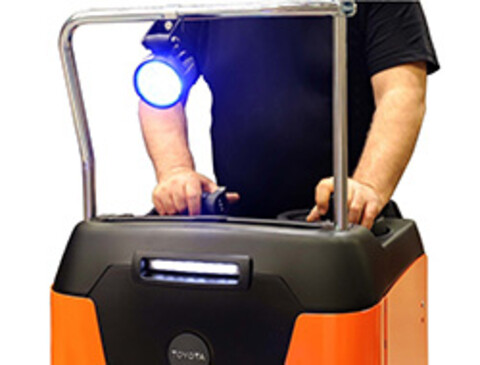

Safety features
Safety features such as different types of warning lights - including blue LED - and warning buzzers are available as an option.

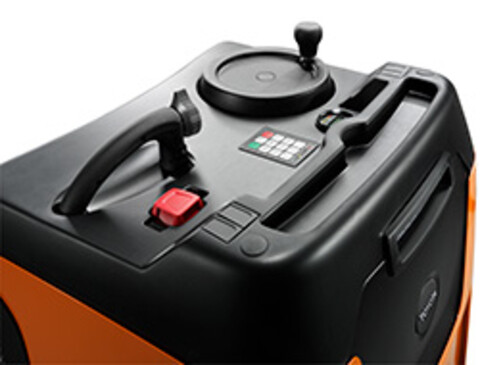

Intuitive controls
The order picker comes with an easy to operate steering wheel, a hand grip with integrated direction control, and PIN code access.

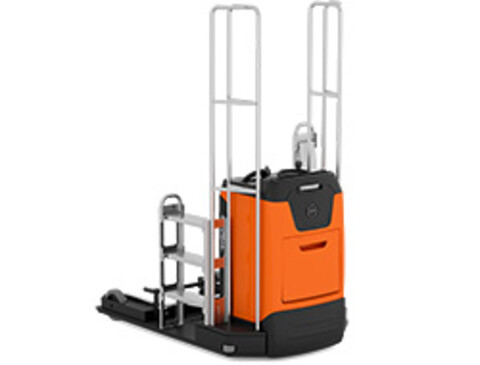

Foldable ladders
To increase the picking height up to 2.5 m foldable ladders can be added on both sides of the truck.
Informative display
A colour display gives the operator all necessary information at a glance.Technical description
- The Toyota BT Optio N-series order picking trucks offer flexible, efficient and frequent material handling
- The trucks and trolleys are ergonomically designed and easy to use
- The concept is based on order picking from or onto trolleys
- Unique docking system that makes attaching and detaching trolleys quick and easy
- Productivity can be increased by up to 50% compared to manual picking
- Up to 1000 kg towing capacity
- Low step-in height of only 70 mm
- Low service weight
- Programmable operator parameter settings
- Maximum speed 12 km/h
- Quick response in steering and acceleration
- Easy service accessibility
- External charger and built-in battery cassette for convenient battery exchange
