Specifications
Product features
- Straddle support arms to handle closed and open pallets
- 5-point chassis with centered steering arm and drive wheel for more control and visibility
- Clear view of the forks
- Click-2-Creep for quick access creep mode
- Smart truck: easy to connect, monitor & improve

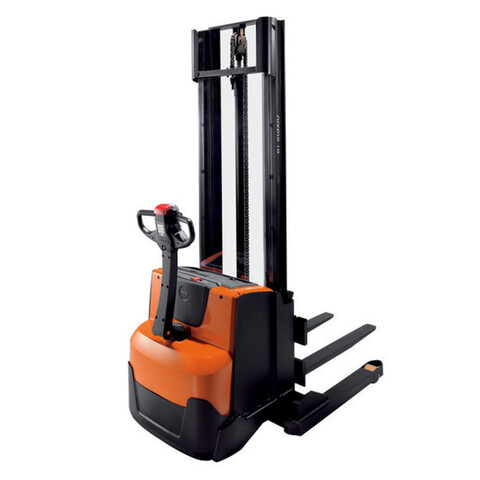

Need a high-performance stacking solution to handle different pallet types? Our BT Staxio W-series SWE120S with 1200 load capacity and straddle support arms has been designed to allow the operator to get on with the job at hand – safely and easily. With excellent visibility through the truck mast and intuitive controls, it can be driven with the handle in an upright position for improved manoeuvrability in tight spaces.

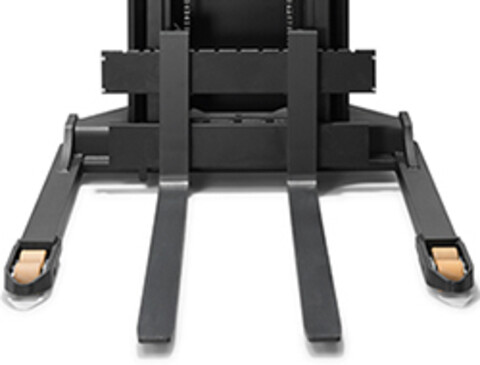

Adjustable width over forks
Closed pallets or different load carrier types can be handled thanks to the straddle support arms and adjustable fork width, increasing flexibility.
Excellent visibility
Clear view masts and great visibility from the operator's position towards the fork tips.
Easy and safe handling
If driving in the steering arm direction, the tiller arm safety button changes the drive direction when pushed. This reduces the risk for the driver getting stuck between the truck and an obstacle or wall. The Click-2-Creep feature simply lets you double-click the control lever to set the truck to creep mode, giving the operator safe control in tight situations.
Li-ion technology
Based on Toyota's own high-density lithium-ion technology, this battery solution ensures high levels of performance, and maximises energy efficiency whilst reducing energy costs and CO2 emissions.
Platform option
With the shorter, centrally placed steering arm, the operator can enjoy better driving ergonomics and the truck can be used with platform or as walkie. This platform option increases flexibility.
Smart truck
Smart trucks come with telematics hardware as standard. These trucks can easily be connected with I_Site from Toyota, offering insights into battery management, geolocation, shocks, and much more.Technical description
The SWE120S comes with straddle support arms to allow handling different pallet sizes.
- Lift heights up to 4.75 metres
- Travel speed up to 6 km/h
- Excellent visibility
- BT Powerdrive System
- Fingertip controls
- Electronic braking system
- Electronic speed control
- Operator safety
- Storage compartments
- Automatic switch-off
- Click-2-creep
- Programmable performance
- Easy access for maintenance
- Smart truck with telematics hardware
- Built in charger (add-on)
- Sensilift (add-on)
- Flip-up operator platform (add-on)
- Hydraulic oil for low temperatures (add-on)
Like all Toyota trucks, the BT Staxio trucks are built according to the Toyota Production System, ensuring the highest levels of quality, durability and reliability.
